GEPRC ELRS Dual Diversity FPV Drone Receiver Transmitter 2.4g

GEPRC ELRS DUAL 2.4G Diversity Receiver

Specification

Size: 20*14mm

Weight: 1.2g (RX only)

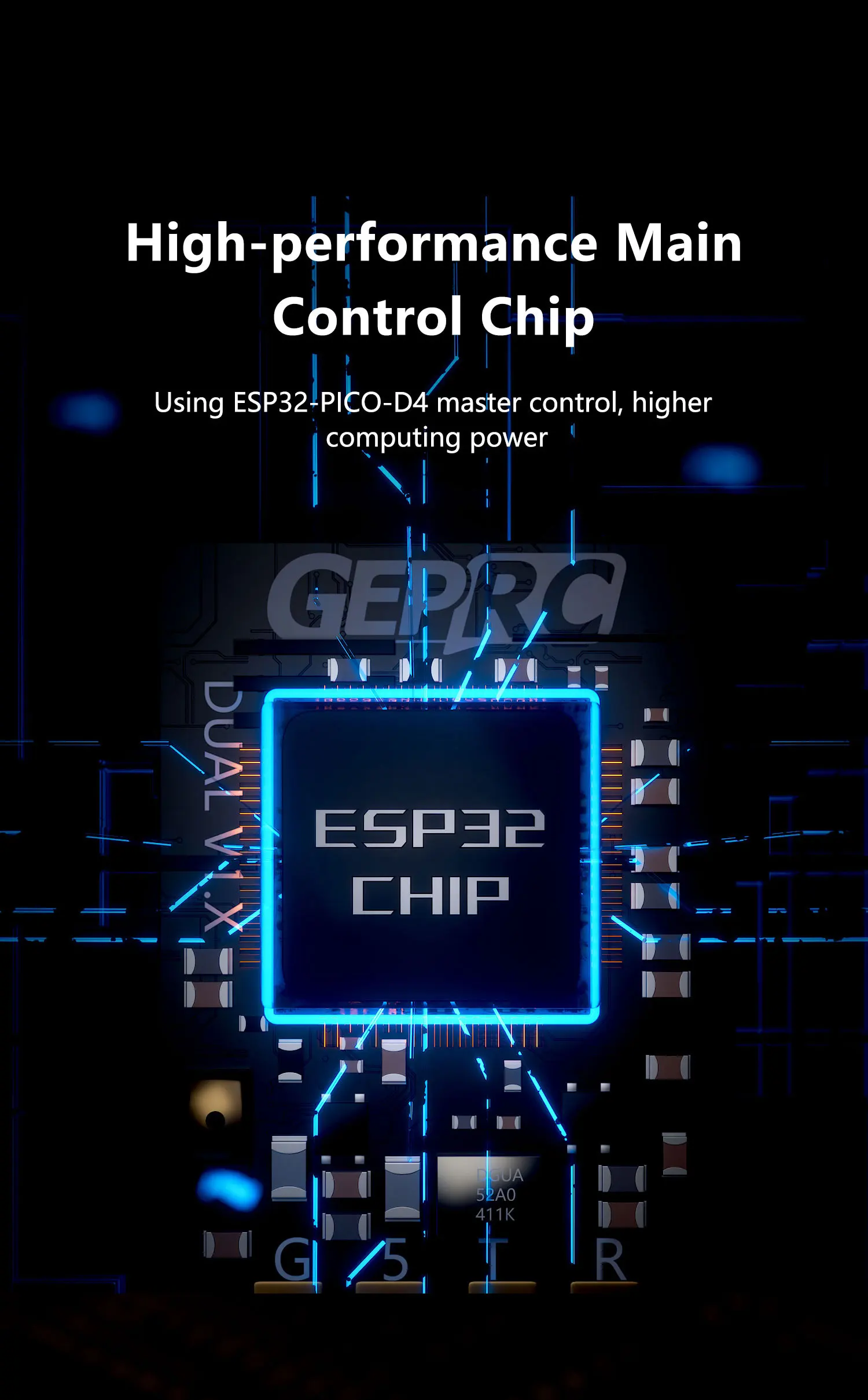

Chips: ESP32-PICO-D4, SX1281

Crystal Oscillator: TCXO

Frequency Band: 2.4GHz ISM

Refresh Rate: 25Hz-1000Hz

Input Voltage: 5V

Antenna Connector: ipex1

Indicator Light: RGB light

TLM Power: 20dBm

Feature

20mm*14mm Small size

1.2g weight

WIFI Upgrade firmware

ELRS open source project, remote control

Maximum refresh rate of 1000Hz

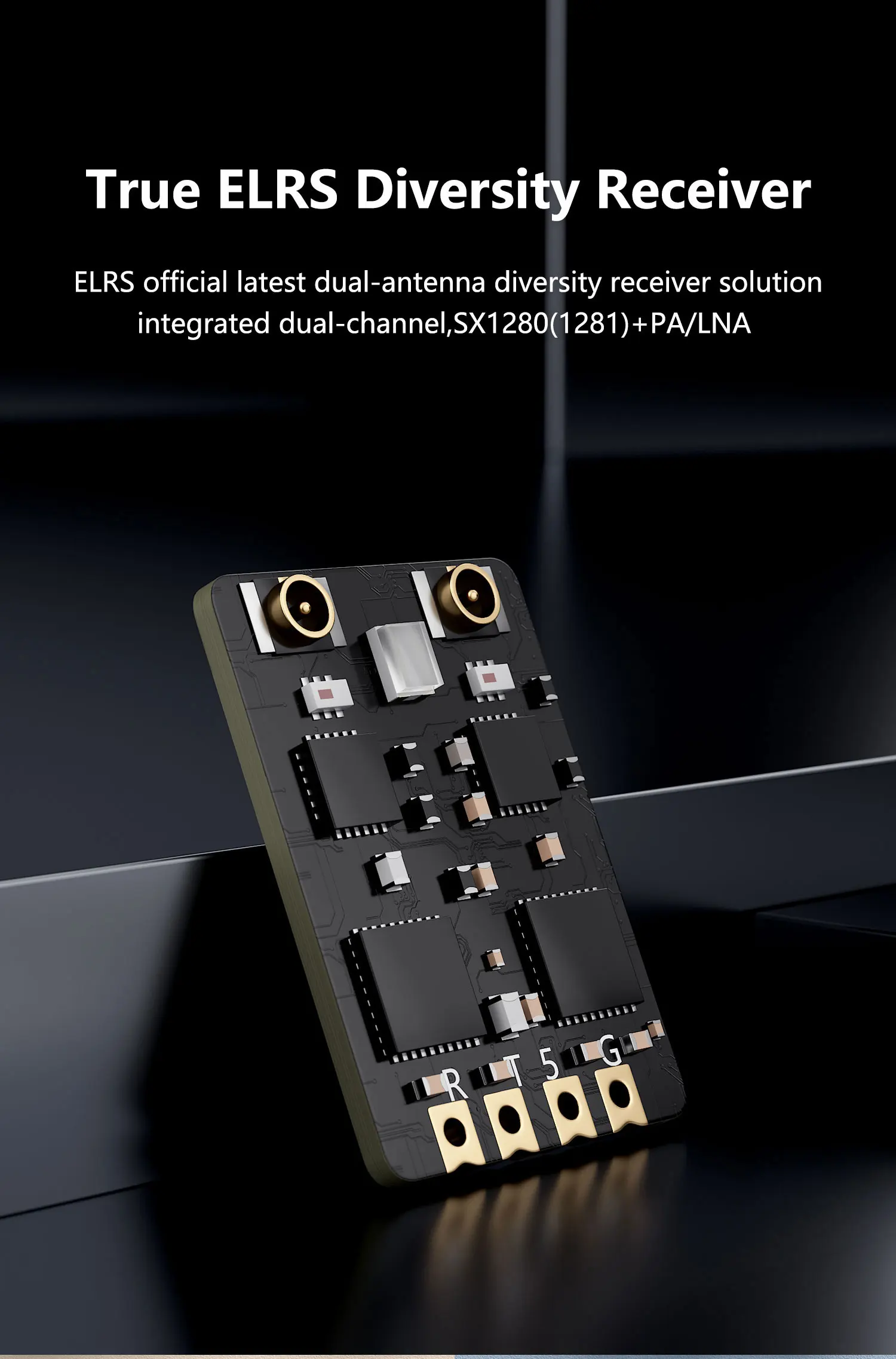

Two independent RF receiving links, true diversity receiver

The use of temperature-compensated crystal oscillator (TXCO), no fear of high or low temperature impact, more stable performance, even if long hours of work is not easy to cause loss of control

Built-in PA + LNA, up to 100mW telemetry power

Diagram
